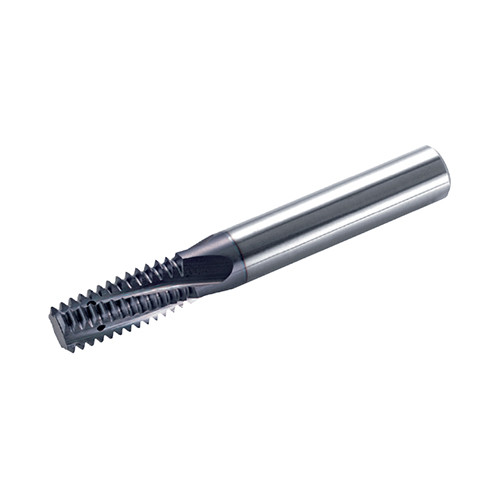

MTECZ 12114C28 11UN TT9030
Solid carbide internal threading end mills with coolant holes in the flutes for UN threads

Thread Size | 5/8 | Application | | Internal Thread Milling | |
Threads per Inch (TPI) | 11 | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Edge Material | Carbide |
Cutting Diameter (DC) | 11.4 mm | Usable Length (LU) | 28.9 mm |
Overall Length (OAL) | 84 mm | Measurement Type | Metric |
Flute Count (NOF) | 3 | Grade | TT9030 |
Shank Type | Round | Body Material | Carbide |
Coating | TiAlN | Unit | M |

Product Features
Family Description | Solid carbide internal threading end mills with coolant holes in the flutes for UN threads | COO | ISRAEL |
Shipping Info
Weight per item
0.0030
