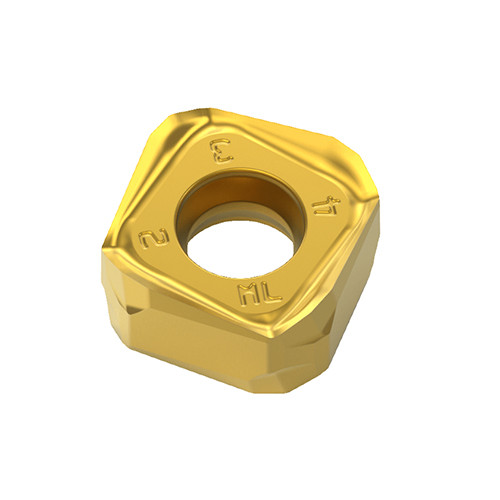

SQKU 1406 ANR-ML TT3535

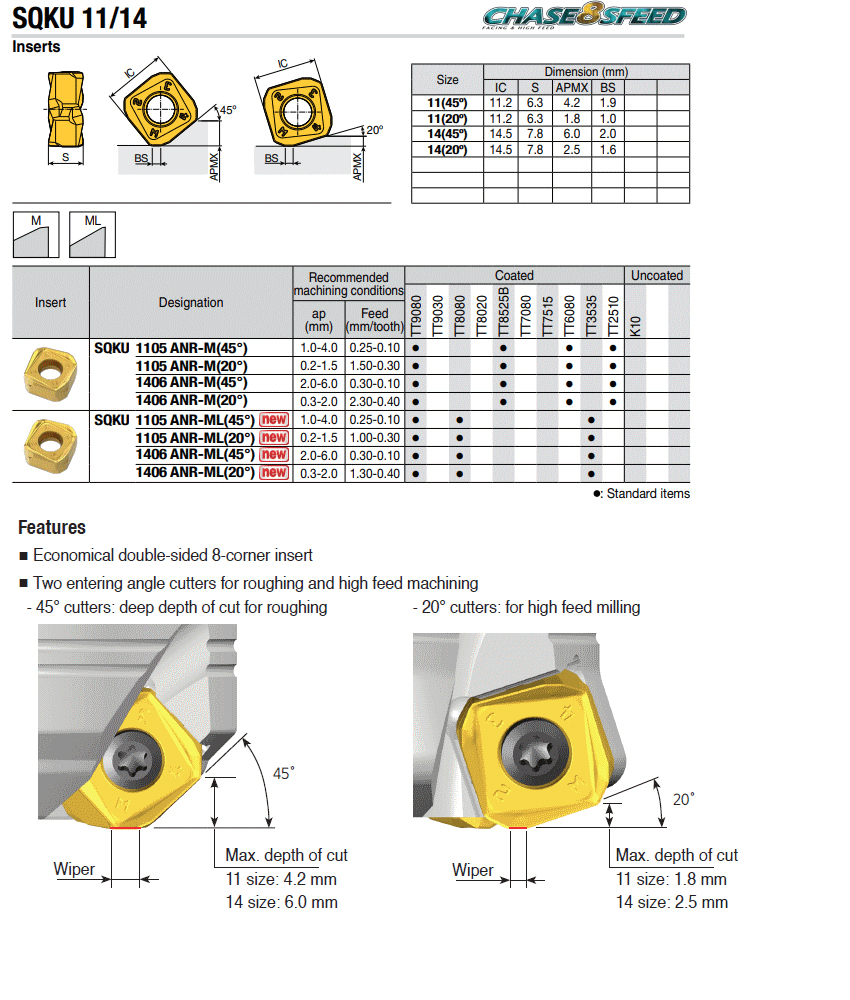

Double-sided Square inserts with 8 cutting edges for roughing (45°) and high feed (20°) face milling and high feed machining.
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Chamfer & Serration | Facing | High Feed Milling | Inserts | | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 6 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |

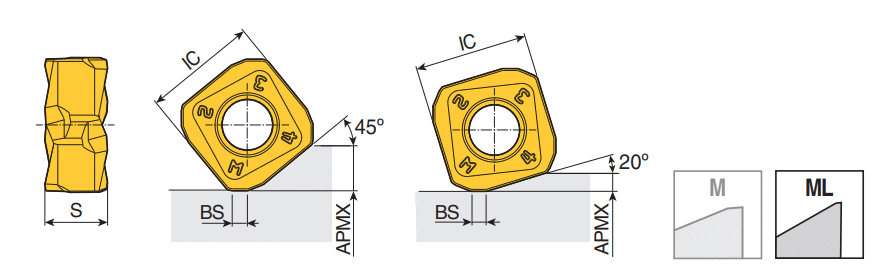

| Inscribed Circle Diameter (IC) | 14.5 mm | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 7.8 mm | Measurement Type | Metric |
| Coating | Multinano TiAlN | Body Material | Carbide |
| Grade | TT3535 | Unit | M |
Product Features
| Family Description | Double-sided Square inserts with 8 cutting edges for roughing (45°) and high feed (20°) face milling and high feed machining. | FamilyName | SQKU 14 ANR-ML |
| Remarks | For recommended machining condition, please click on "More Info" Feed & Depth of cut data for 45~ facing. | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0149
Name
Milling Indexable Inserts
FamilyName
SQKU 14 ANR-ML
BrandName
Taegutec
