TJS HPC C6
High-pressure 40-70 bar coolant driven high-speed spindle with C6 C-ADAPTER shanks for max. shank diameter 7mm tools. For semi-finishing & finishing applications in milling, drilling & grinding on limited RPM machines.
| Functional Length (LF) | 107 mm | Application | | High Speed Jet Spindle | |
| Protruding Length (LPR) | 124 mm | Connection Diameter Machine Side (DCONMS) | 63 mm |
| Overall Length (OAL) | 162 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 7 mm |
| Body Diameter (BD) | 90 mm | Body Material | Steel |
| Measurement Type | Metric | Unit | M |
Product Features
| Family Description | High-pressure 40-70 bar coolant driven high-speed spindle with C6 C-ADAPTER shanks for max. shank diameter 7mm tools. For semi-finishing & finishing applications in milling, drilling & grinding on limited RPM machines. | FamilyName | TJS HPC C6 |

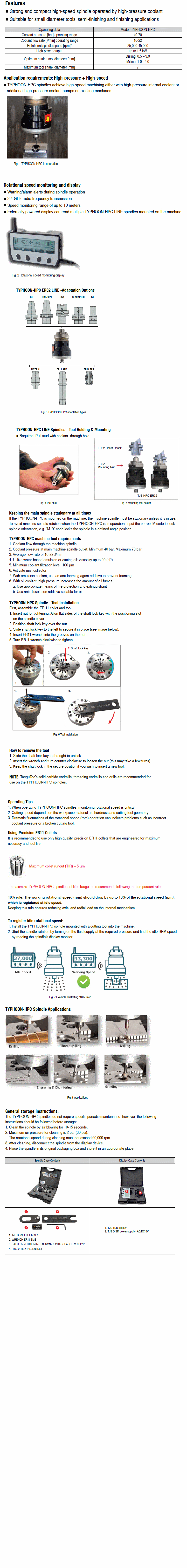

| Remarks | Coolant pressure: 40 70 bar and flow rate: 16 22 /min Rotational spindle speed [rpm]: 25,000 45,000 (rev/min) The spindle provides only external strong coolant jet around the tool DCONXWS: Maximum diameter of tools For user guide, click on "More Info" | BrandName | Taegutec |
| COO | ISRAEL |
Shipping Info
Weight per item
0.0000
Name
HSM Spindles
FamilyName
TJS HPC C6
BrandName
Taegutec
