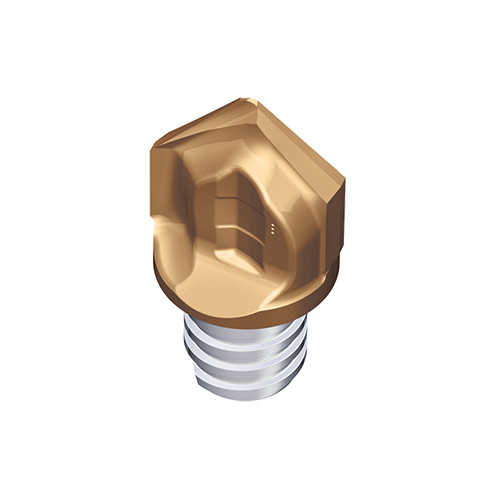

MXCP120L12A45-02S08 TT5523
Interchangeable solid carbide heads for spot drilling, chamfering and countersinking with 2 flute
| Application | | Chamfer & Serration | Countersinking | Drill Mill | Solid Carbide End Mills | | Flute Helix Angle (FHA) | 45 Degrees |

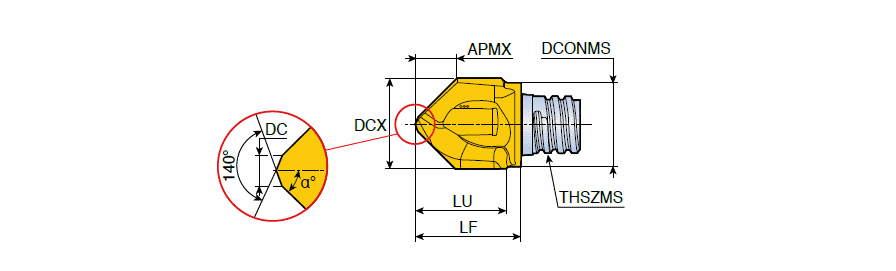

| Cutting Diameter (DC) | 1.5 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | S08 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 12 mm | Usable Length (LU) | 11.5 mm |
| Depth of Cut Maximum (APMX) | 5.4 mm | Protruding Length (LPR) | 15.4 mm |
| Connection Diameter Machine Side (DCONMS) | 11.5 mm | Body Material | Carbide |
| Functional Length (LF) | 15.4 mm | Unit | M |
Product Features
| Family Description | Interchangeable solid carbide heads for spot drilling, chamfering and countersinking with 2 flute | FamilyName | MXCP-02 |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0230
Name
Solid End Mill Heads
FamilyName
MXCP-02
BrandName
Taegutec
