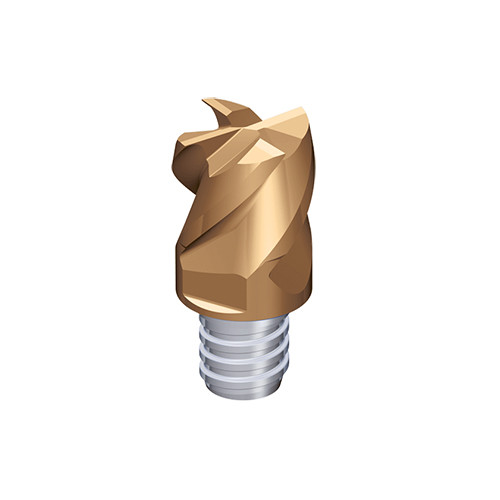

MXEE160L12R05-04S10 TT5523
Interchangeable Solid carbide flat type end mill heads with 4 flute & various corner radii for general purpose

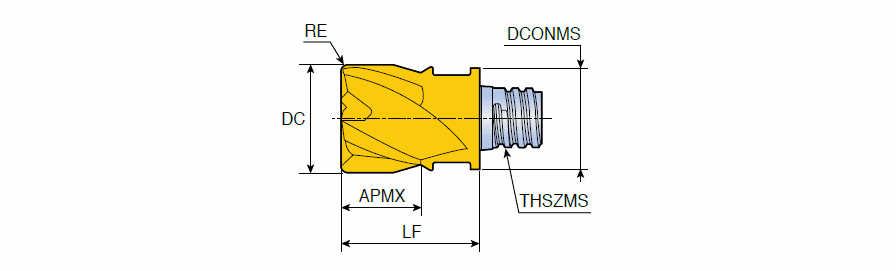

| Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 16 mm | Grade | TT5523 |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Coating | AlTiN |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 0.5 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | S10 | Protruding Length (LPR) | 20.5 mm |
| Depth of Cut Maximum (APMX) | 12 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 15.3 mm | Unit | M |
| Functional Length (LF) | 20.5 mm |
Product Features
| Family Description | Interchangeable Solid carbide flat type end mill heads with 4 flute & various corner radii for general purpose | FamilyName | MXEE(D)-04 |
| Remarks | Wrench should be ordered separately | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.0580
Name
Solid End Mill Heads
FamilyName
MXEE(D)-04
BrandName
Taegutec
