TPH454C05 M2X0.4

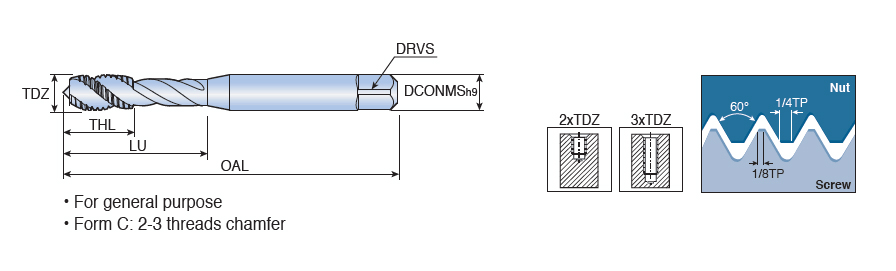

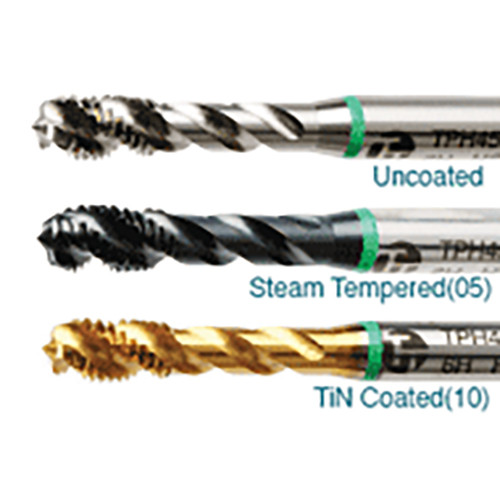

HSSE Right-hand 40 spiral flute,machine taps for ISO threads, according to DIN 13. (Form C:2-3 threads chamfer)
| Thread Diameter Size (TDZ) | M2 mm | Flute Helix Angle (FHA) | 40 Degrees |
| Thread Pitch (TP) | 0.4 mm | Square Size | 2.1 mm |
| Overall Length (OAL) | 45 mm | Measurement Type | Metric |
| Thread Cutting Part Length (THL) | 6 mm | Application | | Deep hole with short thread | Taps for deep blind hole | Taps for short blind hole | |
| Usable Length (LU) | 10 mm | Body Material | HSS |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Unit | M |
Product Features
| Family Description | HSSE Right-hand 40 spiral flute,machine taps for ISO threads, according to DIN 13. (Form C:2-3 threads chamfer) | COO | HUNGARY |
Shipping Info
Weight per item
0.0030
