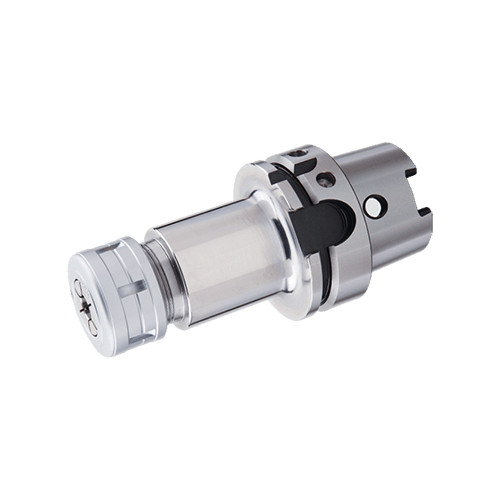

HSK A 63 TSK 10-90
High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in HSK DIN69893 form A taper shanks

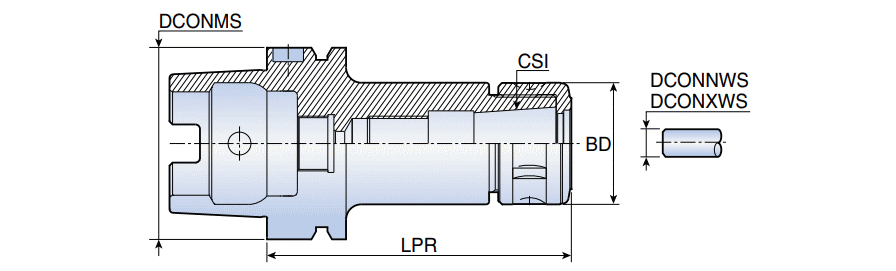

| Connection Size (CSI) | 10 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1.5 mm |
| Body Diameter (BD) | 27.3 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 10 mm |
| Body Length Maximum (LBX) | 90 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Application | | HSK DIN 69893 | | Unit | M |
Product Features
| Family Description | High accuracy slim collet chucks for finishing with reamer & end mills and general machining with drills & end mills in HSK DIN69893 form A taper shanks | FamilyName | HSK A-TSK (Slim Chuck) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.6000
Name
Collet Chucks
FamilyName
HSK A-TSK (Slim Chuck)
BrandName
Taegutec
