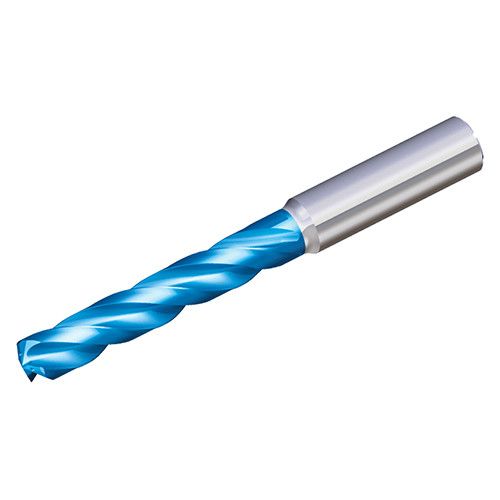

3HD 065-043-08 PI5 TT5130
3 Flute Solid carbide drills with coolant holes for high productivity

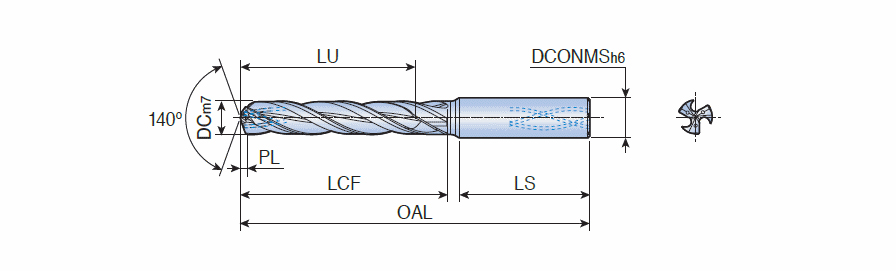

| Drill Bit Size / Cutting Diameter (DC) | 6.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.5 mm | Grade | TT5130 |
| Coating | Multi TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | | Usable Length (LU) | 43 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 54 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Overall Length (OAL) | 91 mm |
| Point Length (PL) | 1.26 mm | Body Material | Carbide |
| Shank Length (LS) | 36 mm | Unit | M |
Product Features
| Family Description | 3 Flute Solid carbide drills with coolant holes for high productivity | COO | S.KOREA |
Shipping Info
Weight per item
0.0430
