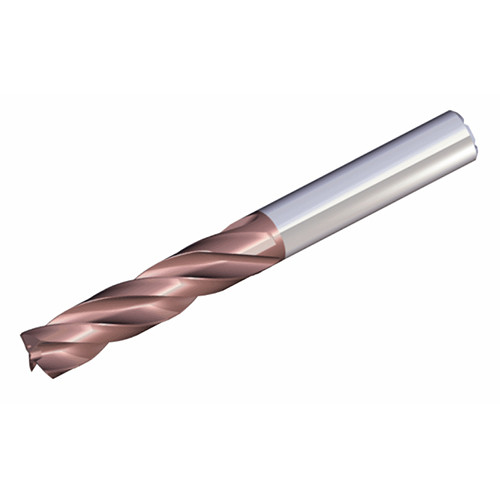

3HD 045-017-06 FI3 TT5130

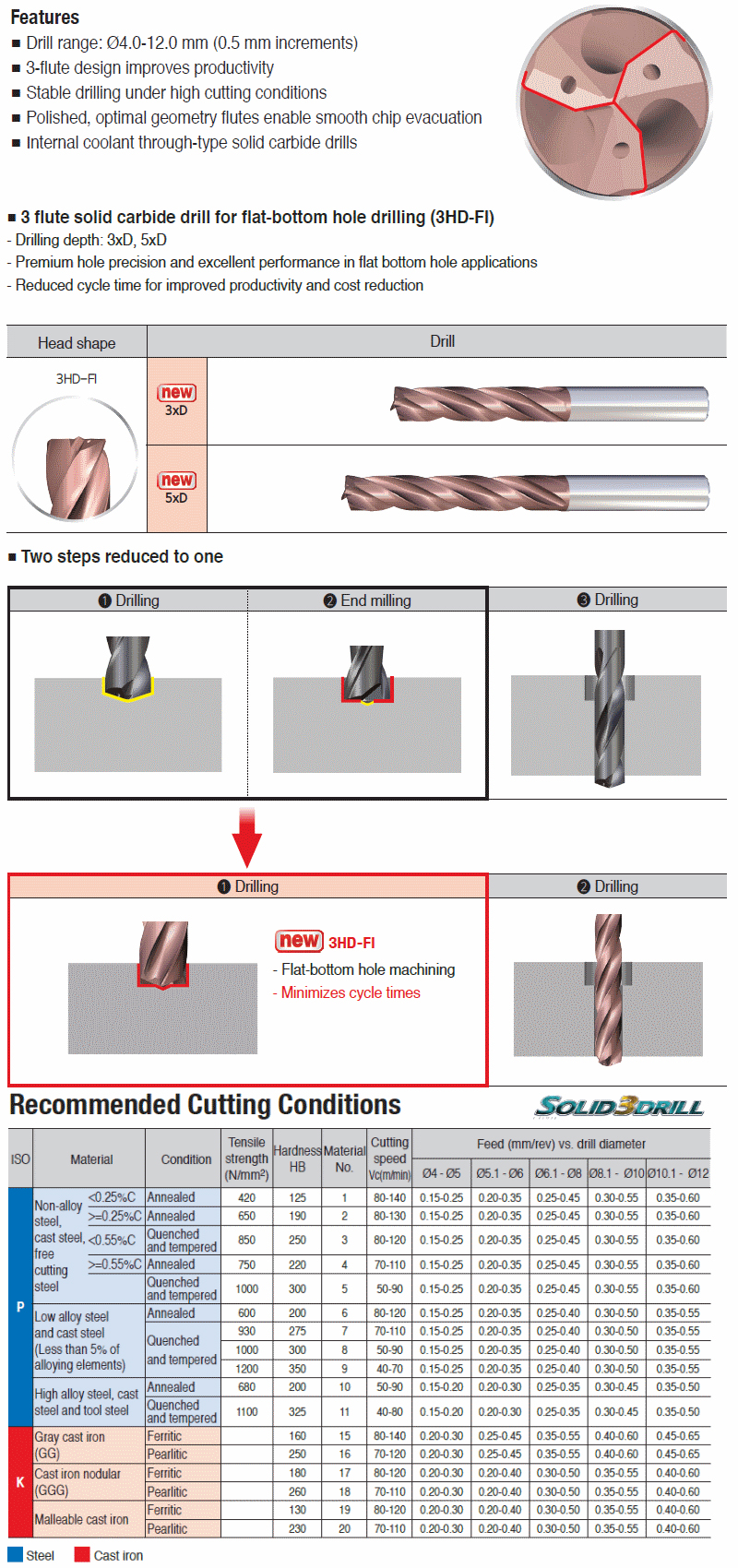

3 flute solid carbide drills with flat bottom geometry in drilling depth of 3xD for high productivity and flat-bottom hole drilling

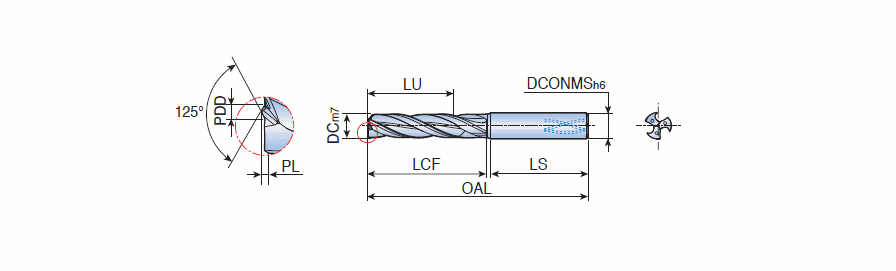

| Drill Bit Size / Cutting Diameter (DC) | 4.5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.5 mm | Grade | TT5130 |
| Coating | Multi TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | | Usable Length (LU) | 17 mm |
| Application | | Drilling | Tools for Swiss Machines | | Length Chip Flute (LCF) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Overall Length (OAL) | 66 mm |
| Point Length (PL) | 0.45 mm | Body Material | Carbide |
| Shank Length (LS) | 35 mm | Unit | M |
Product Features
| Family Description | 3 flute solid carbide drills with flat bottom geometry in drilling depth of 3xD for high productivity and flat-bottom hole drilling | COO | S.KOREA |
Shipping Info
Weight per item
0.0210
