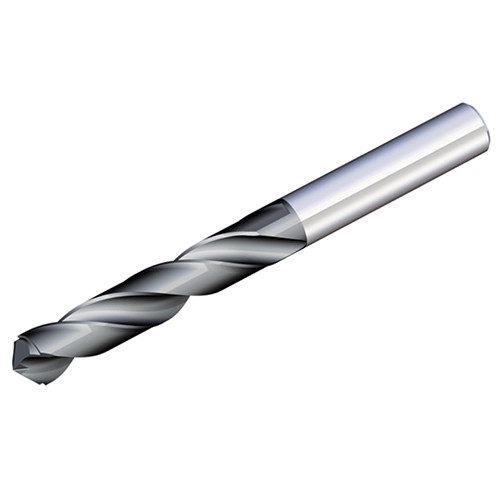

CDF 080-040-08 TTD610
Solid carbide drills for composite materials
| Drill Bit Size / Cutting Diameter (DC) | 8 mm | Grade | TTD610 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8 mm | Measurement Type | Metric |
| Coating | Diamond | Usable Length (LU) | 42.2 mm |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Length Chip Flute (LCF) | 52.2 mm |
| Application | | Drilling | | Overall Length (OAL) | 90.2 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Body Material | Carbide |
| Point Length (PL) | 2.2 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Solid carbide drills for composite materials | COO | S.KOREA |
Shipping Info
Weight per item
0.0340
