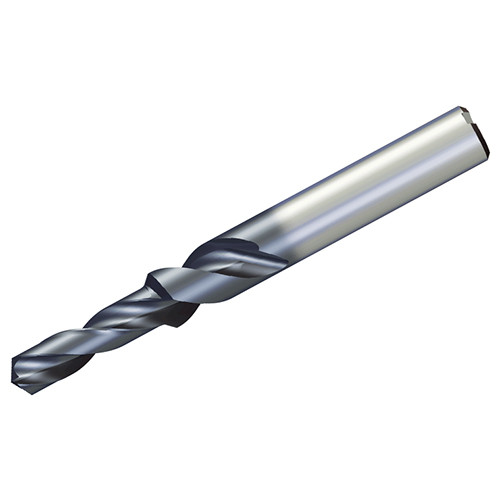

SHO 050X18X8-M6 TT9030
Solid carbide drills for pre-thread hole (M4-M10) with chamfering & coolant holes

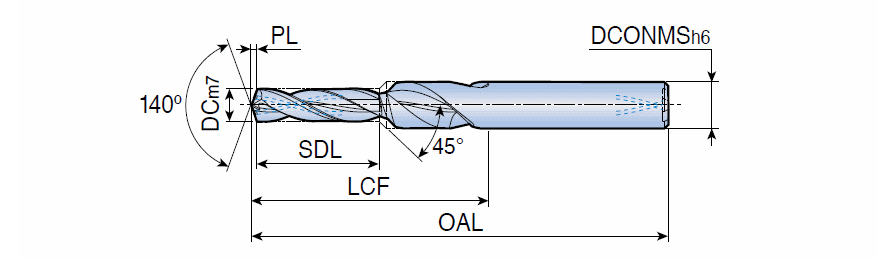

| Drill Bit Size / Cutting Diameter (DC) | 5 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5 mm | Grade | TT9030 |
| Coating | TiAlN | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Length Chip Flute (LCF) | 36.8 mm |
| Application | | Chamfering | | Overall Length (OAL) | 79.8 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Body Material | Carbide |
| Point Length (PL) | 0.8 mm | Unit | M |
Product Features
| Family Description | Solid carbide drills for pre-thread hole (M4-M10) with chamfering & coolant holes | COO | S.KOREA |
Shipping Info
Weight per item
0.0425
