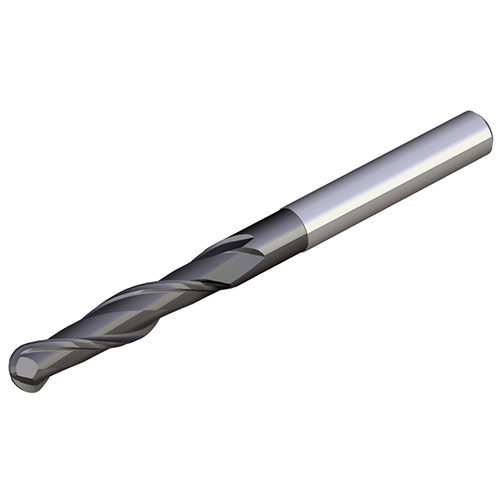

DEB 2120L TTD620
Solid carbide ball nose end mills with long & 2 flute for graphite machining

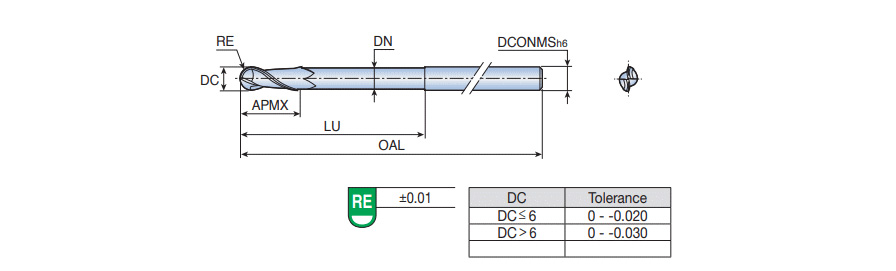

| Cutting Diameter (DC) | 12 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Profiling | Solid Carbide End Mills | |
| Depth of Cut Maximum (APMX) | 55 mm | Corner Radius (RE) | 6 mm |
| Overall Length (OAL) | 130 mm | Neck Diameter (DN) | 11.5 |
| Cutting Edge Material | Carbide | Grade | TTD620 |
| Coating | Diamond | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
| Usable Length (LU) | 75 mm |
Product Features
| Family Description | Solid carbide ball nose end mills with long & 2 flute for graphite machining | FamilyName | DEB 2...L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1810
Name
Ballnose End Mills
FamilyName
DEB 2...L
BrandName
Taegutec
