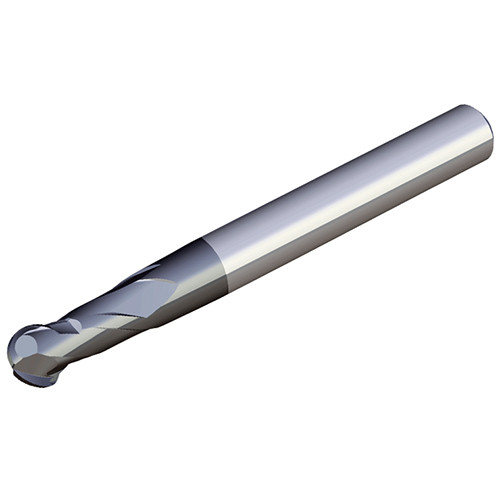

BES 2060T TT5515
Solid carbide Spherical ball nose end mills with 2 flute for profiling

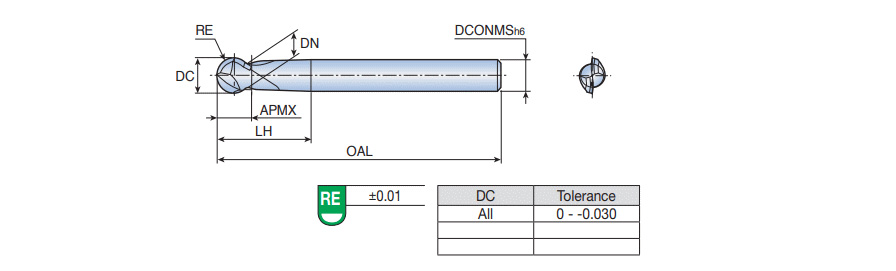

| Cutting Diameter (DC) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Profiling | Solid Carbide End Mills | |
| Depth of Cut Maximum (APMX) | 6.1 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 100 mm | Neck Diameter (DN) | 5.03 |
| Cutting Edge Material | Carbide | Grade | TT5515 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | Solid carbide Spherical ball nose end mills with 2 flute for profiling | FamilyName | BES 2...T |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0470
Name
Ballnose End Mills
FamilyName
BES 2...T
BrandName
Taegutec
