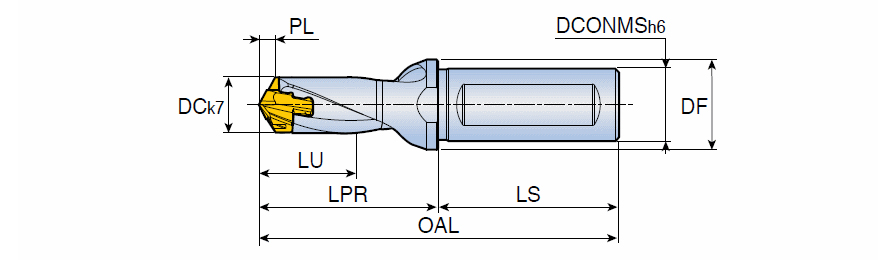

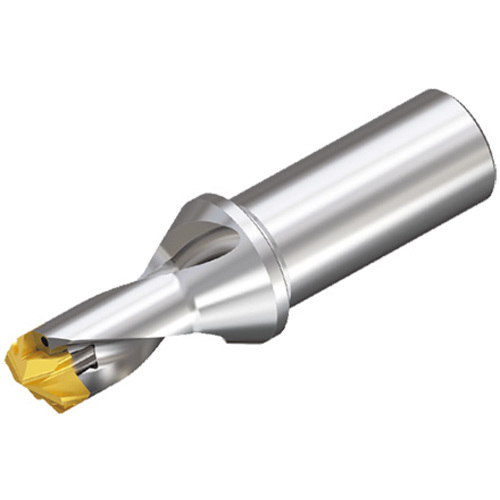

TCD 170-179-20T3-1.5D
| Usable Length (LU) | 29 mm | Functional Length (LF) | 49.81 mm |
| Application | | Drilling | Tools for Swiss Machines | | Shank Length (LS) | 50 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Cutting Diameter Minimum (DCN) | 17 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 17.9 mm | Unit | M |
Product Features
| Family Description | Head changeable drills with Weldon shank (1.5xD) and coolant holes | COO | S.KOREA |
Shipping Info
Weight per item
0.2200
