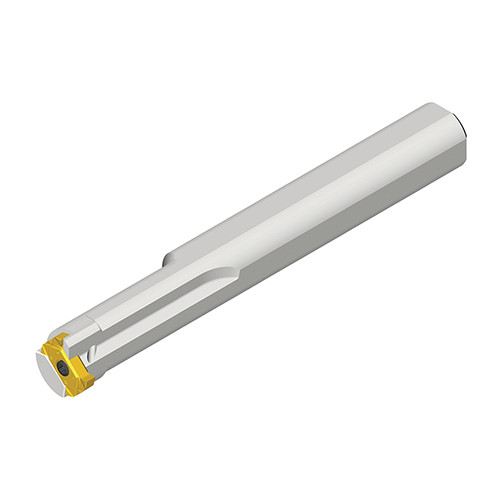

TQHIR 25-29-14

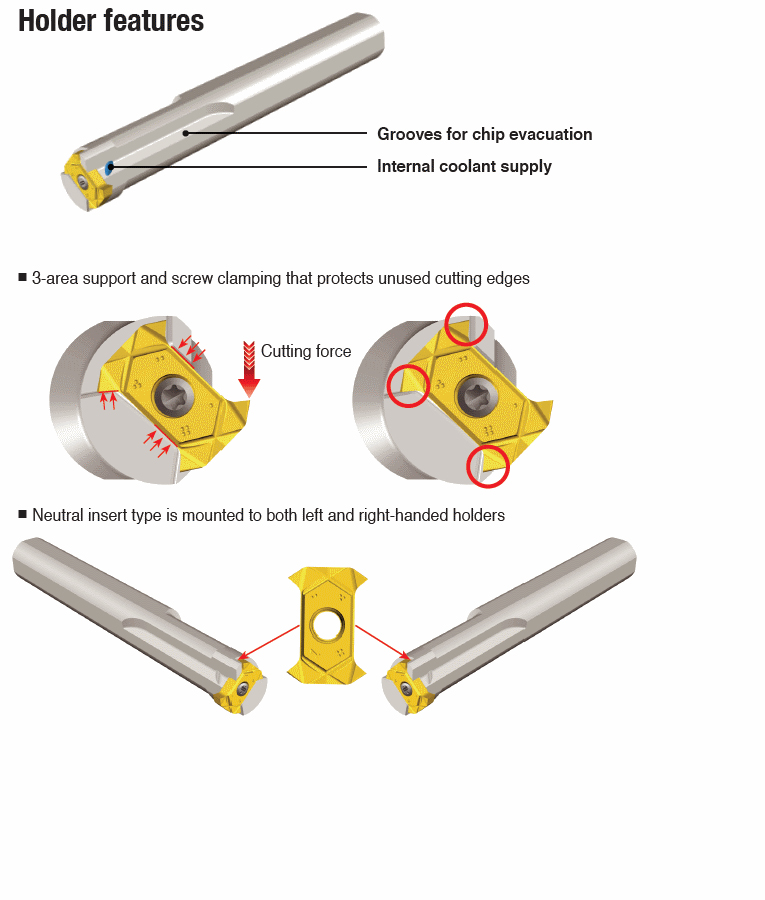

Boring bars for internal shallow grooving on small diameter with coolant hole & TQIS 14-4 corner inserts

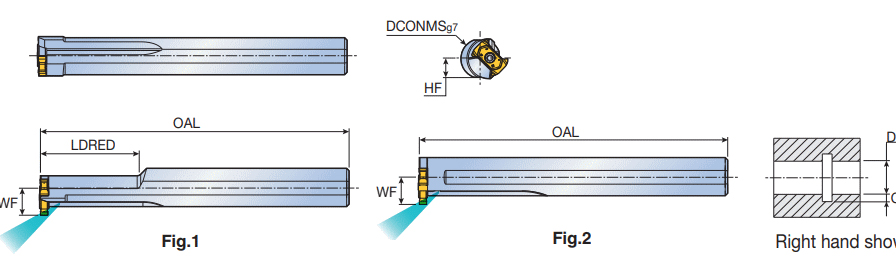

| Connection Diameter Machine Side (DCONMS) | 25 mm | Functional Width (WF) | 15.5 mm |
| Minimum Bore Diameter (DMIN) | 29 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | - | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand | Overall Length (OAL) | 200 mm |
| Application | | Int. Groove & Turn | Int. Grooving | Tools for Swiss Machines | | Unit | M |
Product Features
| Family Description | Boring bars for internal shallow grooving on small diameter with coolant hole & TQIS 14-4 corner inserts | FamilyName | TQHIR/L |
| Remarks | CDX: Refer to insert dimension | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.7450
Name
Solid Boring Bars
FamilyName
TQHIR/L
BrandName
Taegutec
