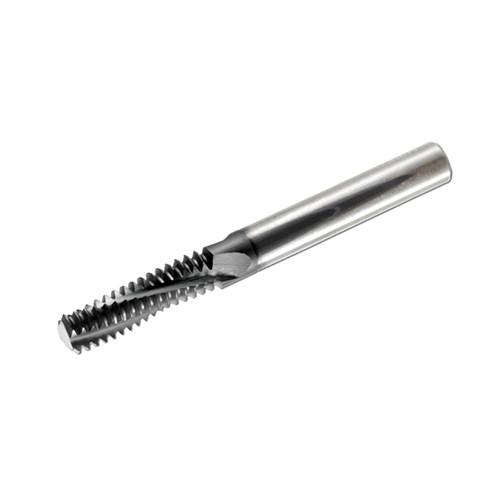

MTEC 0605C141.25ISO TT9030
Solid carbide internal threading end mills for ISO metric threads

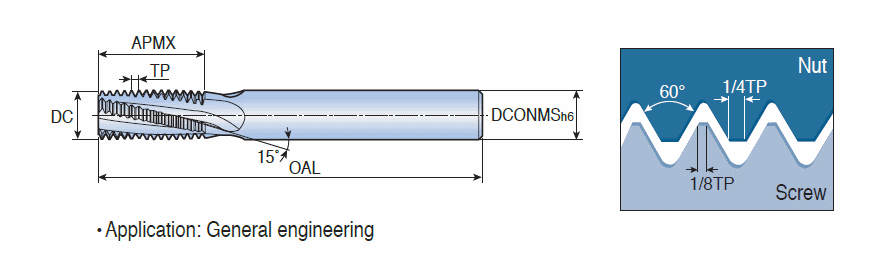

| Thread Size | M8 | Application | | Internal Thread Milling | |
| Thread Pitch (TP) | 1.25 mm | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5 mm | Usable Length (LU) | 14.4 mm |
| Overall Length (OAL) | 58 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | TT9030 |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
Product Features
| Family Description | Solid carbide internal threading end mills for ISO metric threads | COO | ISRAEL |
Shipping Info
Weight per item
0.0011
