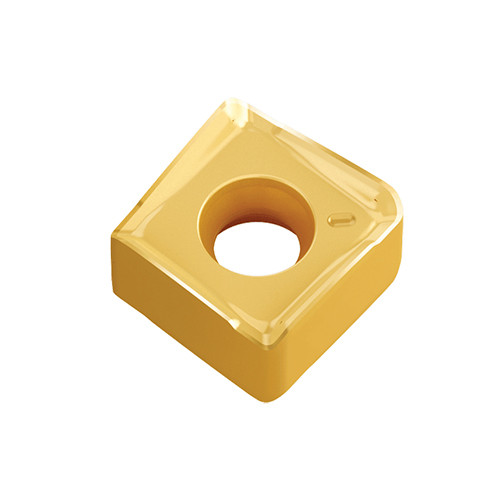

SQKU 100408 PNR-M TT2510
Double-sided Square inserts with 8 cutting edges for 90° shoulder milling & multistep machining without mismatch for general applications
| Applicable Material | | Steel | Hard Materials | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Inserts | Shouldering | Slotting | | Cutting Edge Material | Carbide |

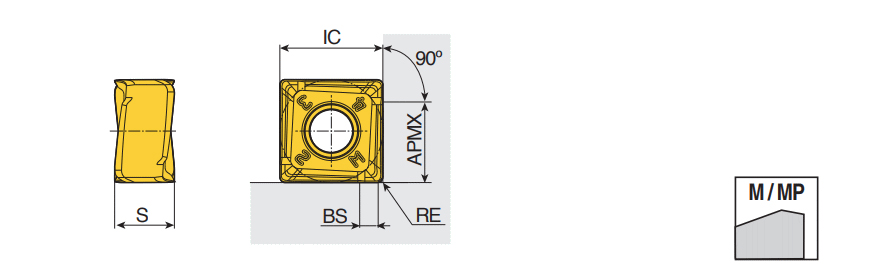

| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 5.5 mm | Number of Cutting Edges | 8 |
| Inscribed Circle Diameter (IC) | 10 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5.8 mm | Body Material | Carbide |
| Coating | AlTiN | Unit | M |
| Grade | TT2510 |

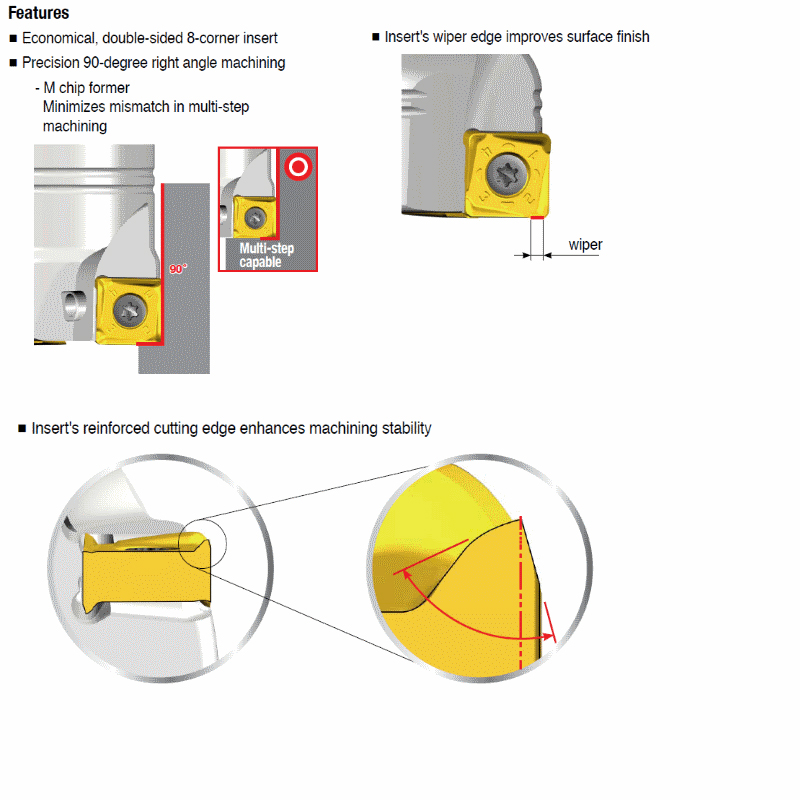

Product Features
| Family Description | Double-sided Square inserts with 8 cutting edges for 90° shoulder milling & multistep machining without mismatch for general applications | FamilyName | SQKU 10-PNR-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0062
Name
Milling Indexable Inserts
FamilyName
SQKU 10-PNR-M
BrandName
Taegutec
