| Applicable Material | | Super-Alloys / Titanium | | Grade | TT3005 |
| Application | | Ext 75° App 100° Diamond | Ext 75° App Face 100° Diamond | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 1.5 mm |

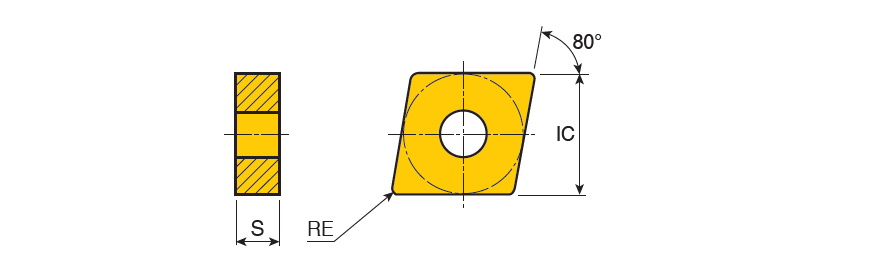

| Corner Radius (RE) | 1.2 mm | Depth of Cut Maximum (APMX) | 4 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.17 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN/Al2O3/TiCN | Unit | M |
Product Features

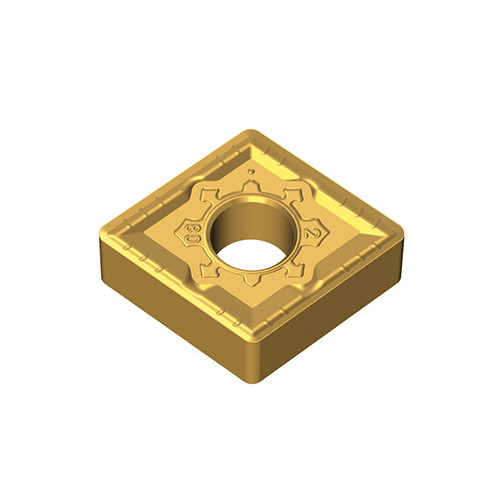

| Family Description | Negative 80° Rhombic inserts for medium to semi-finishing applications of heat resistant super alloys | FamilyName | CNMG-MGS |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0111
Name
Turning Indexable Inserts
FamilyName
CNMG-MGS
BrandName
Taegutec
