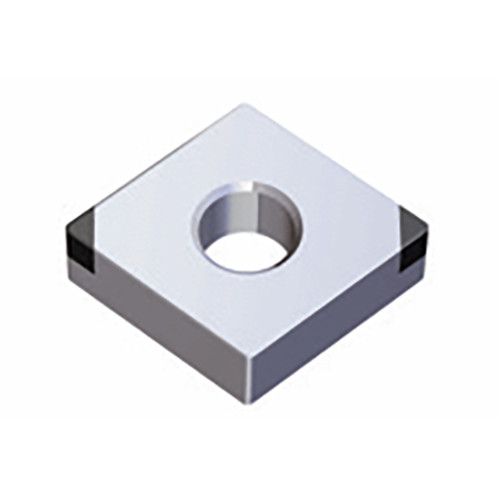

CNGA 120408 LS2-SM TB2215
Negative 80° Rhombic inserts with CBN tips for finishing of hardened steels and cast irons
| Applicable Material | | Hard Materials | | Grade | TB2215 |
| Application | | Ext 75° App 100° Diamond | Ext 75° App Face 100° Diamond | Ext 95° App 80°Diamond | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 0.1 mm |

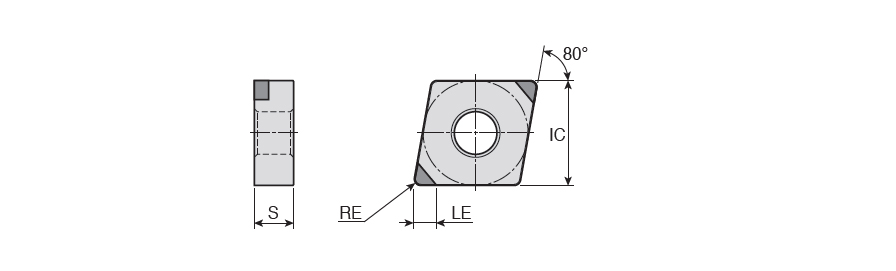

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 0.5 mm |
| Cutting Edge Length (L) | 12.9 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | PCBN | Body Material | Carbide |
| Coating | AlTiN | Unit | M |
Product Features
| Family Description | Negative 80° Rhombic inserts with CBN tips for finishing of hardened steels and cast irons | FamilyName | CNGA-CBN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0230
Name
Turning Indexable Inserts
FamilyName
CNGA-CBN
BrandName
Taegutec
