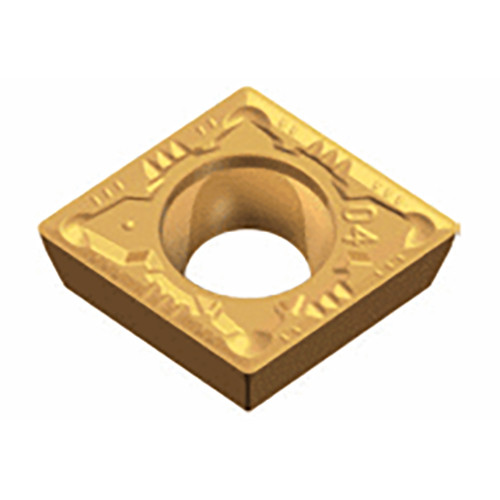

CPMT 090304 FM TT8020

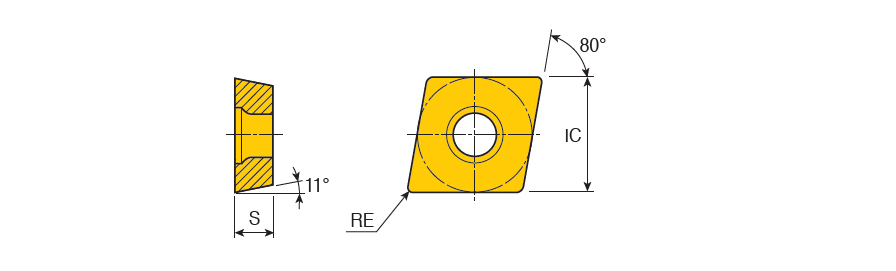

Positive 80° Rhombic inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 11° clearance angle
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT8020 |
| Application | | Inserts | Int 95° App 80° Diamond | | Min D.O.C. | 0.5 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Cutting Edge Length (L) | 0 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.25 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
Product Features
| Family Description | Positive 80° Rhombic inserts for medium and semi-finishing machining of steels & stainless steels with low cutting force & 11° clearance angle | FamilyName | CPMT-FM |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0055
Name
Turning Indexable Inserts
FamilyName
CPMT-FM
BrandName
Taegutec
