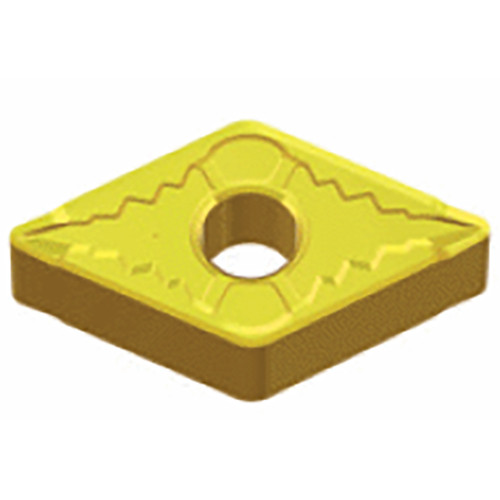

DNMG 150604 EA TT9215
Negative 55° Rhombic inserts for finishing of exotic materials
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | TT9215 |
| Application | | Ext 107.5° App 55° Diamond | Ext 62.5° App 55° Diamond | Ext 93° App 55°Diamond | Inserts | Int 100° App 70° Diamond | Int 107.5° App 55° Diamond | Int 93° App 55° Diamond | Int 93° App 70° Diamond | Int 93° App Back 55° Diamond | Int 95° App 55° Diamond | | Min D.O.C. | 0.1 mm |
| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 15.5 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 6.35 mm | Max. Turning Feed (ft(max)) | 0.2 mm/rev |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+Al203+TiCN | Unit | M |
Product Features
| Family Description | Negative 55° Rhombic inserts for finishing of exotic materials | FamilyName | DNMG-EA |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0184
Name
Turning Indexable Inserts
FamilyName
DNMG-EA
BrandName
Taegutec
