REL 4140L-14 TT5515

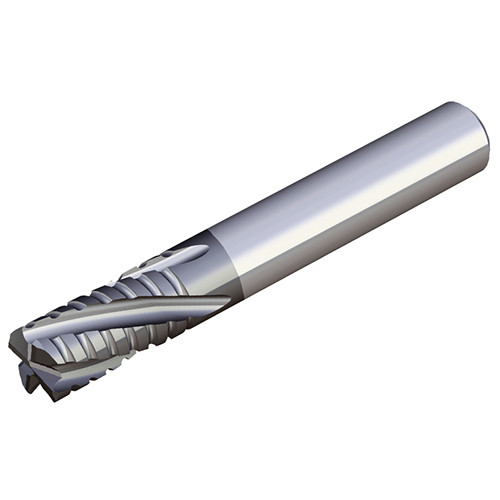

Solid carbide roughing end mills with serrated cutting edges & long length type & 3-4 flute & corner chamfer for hardened steels

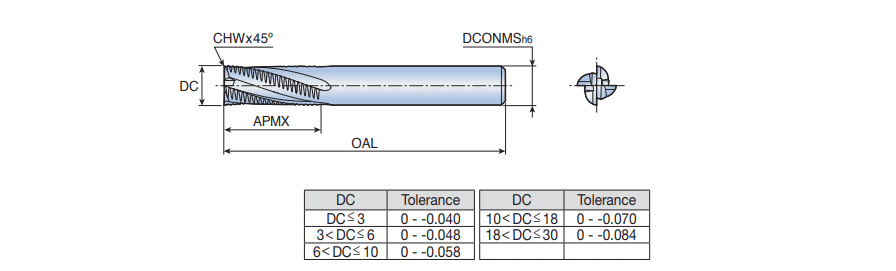

| Cutting Diameter (DC) | 14 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 26 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Overall Length (OAL) | 83 mm | Corner Chamfer Width (CHW) | 0.61 mm |
| Cutting Edge Material | Carbide | Grade | TT5515 |
| Coating | AlTiCrN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees | Unit | M |
| Shank Type | Round |
Product Features
| Family Description | Solid carbide roughing end mills with serrated cutting edges & long length type & 3-4 flute & corner chamfer for hardened steels | FamilyName | REL ...L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1715
Name
Square & Corner Radius End Mills
FamilyName
REL ...L
BrandName
Taegutec
