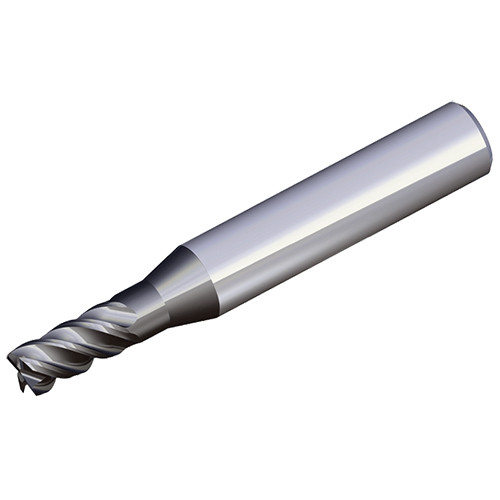

SED 4080U-C0.3 TT5515
4 Flute solid carbide end mills for difficult-to-cut materials with chamfer & unequal spaced cutting edges in less vibration and high productivity

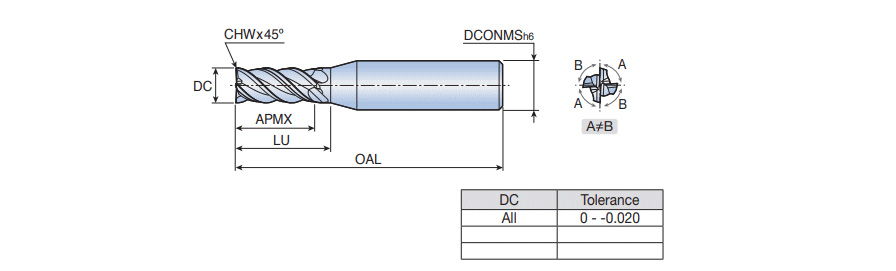

| Cutting Diameter (DC) | 8 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | - |
| Depth of Cut Maximum (APMX) | 25 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 70 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.3 mm |
| Coating | AlTiCrN | Grade | TT5515 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | 4 Flute solid carbide end mills for difficult-to-cut materials with chamfer & unequal spaced cutting edges in less vibration and high productivity | FamilyName | SED 4...U-C |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0430
Name
Square & Corner Radius End Mills
FamilyName
SED 4...U-C
BrandName
Taegutec
