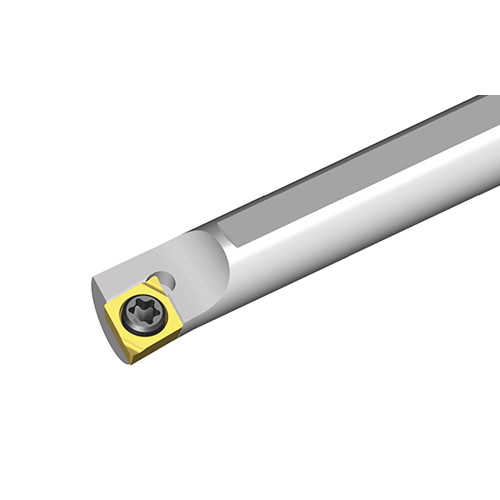

S04F SCLCL 03-D05
TOPMINI screw type boring bars with positive 80° Rhombic inserts for small components machining and 95° approach angle
| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | | Int 95° App 80° Diamond | |
| Functional Length (LF) | 80 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | - | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 5 mm | Unit | M |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | TOPMINI screw type boring bars with positive 80° Rhombic inserts for small components machining and 95° approach angle | FamilyName | S-SCLCR/L-D |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0200
Name
Indexable Internal Turning Tools
FamilyName
S-SCLCR/L-D
BrandName
Taegutec
