S25T PTFNR 16

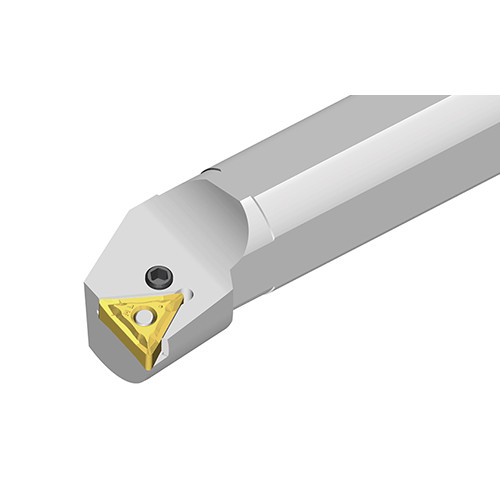

Lever type boring bars for negative Triangular inserts with 91° approach angle

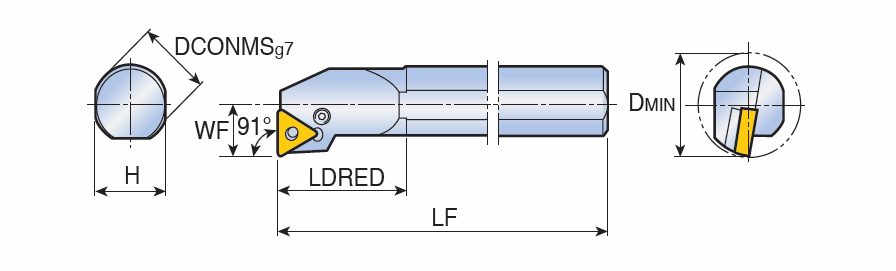

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | Int 91° App 60° Triangle | |
| Functional Length (LF) | 300 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 40 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever type boring bars for negative Triangular inserts with 91° approach angle | FamilyName | S-PTFNR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.0950
Name
Indexable Internal Turning Tools
FamilyName
S-PTFNR/L
BrandName
Taegutec
