S16R SCLCR 09

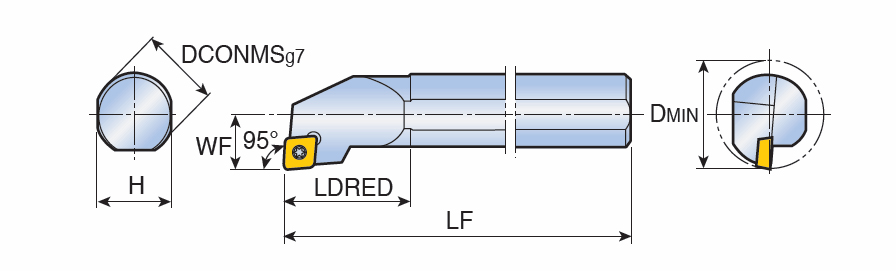

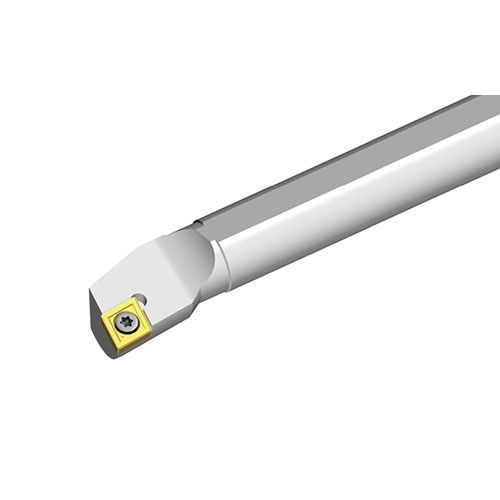

Screw type boring bars for positive 80° Rhombic inserts of 7° clearance angle with 95° approach angle
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | Int 95° App 80° Diamond | |
| Functional Length (LF) | 200 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 30 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 20 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw type boring bars for positive 80° Rhombic inserts of 7° clearance angle with 95° approach angle | FamilyName | S-SCLCR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3400
Name
Indexable Internal Turning Tools
FamilyName
S-SCLCR/L
BrandName
Taegutec
