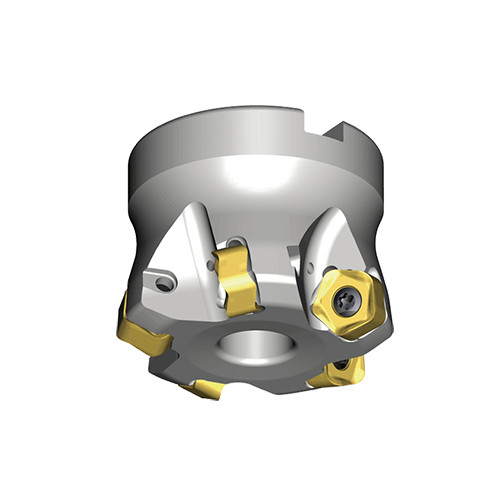

TFMPT 563-22R-10
High Feed mills with PTKU 10 inserts of economical 10 cutting edges in maximum depth of cut ap 3.0 mm

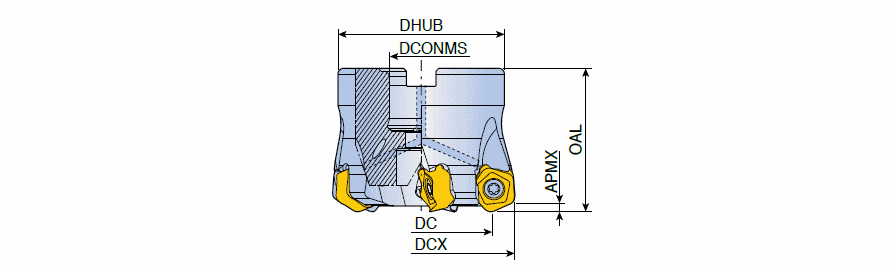

| Cutting Diameter (DC/DCX) | 63 mm | Connection Diameter Machine Side (DCONMS) | 22 mm |
| Cutting Diameter (DC) | 46.4 mm | Master Insert Identification (MIID) | PTKU 1006R-M |
| Cutting Item Count (CICT) | 5 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 3 mm | Body Material | Steel |
| Overall Length (OAL) | 50 mm | Cutting Diameter Maximum (DCX) | 63 mm |

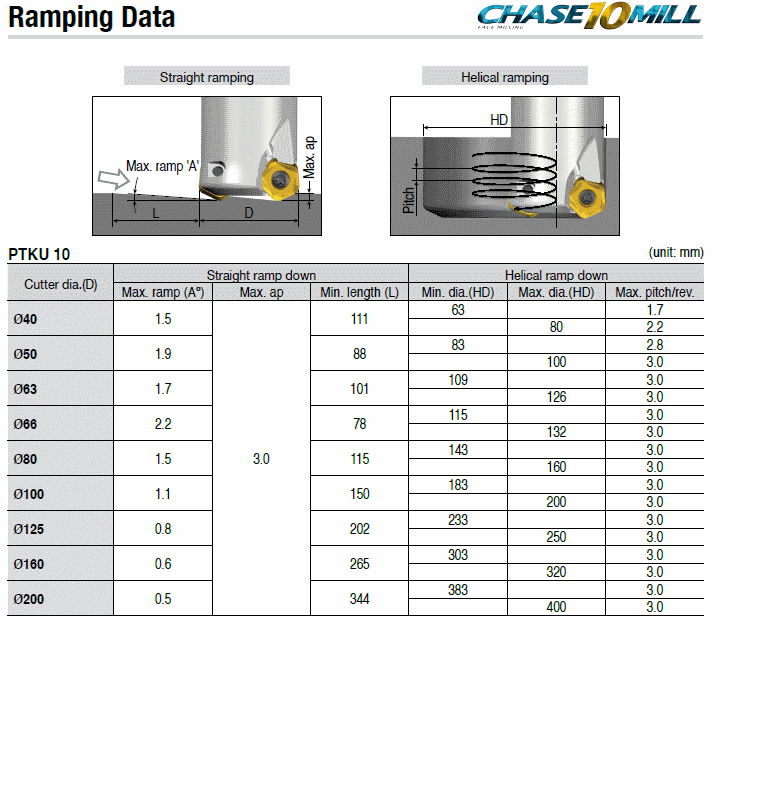

| Application | | Facing | Helical Interpolation | High Feed Milling | Profiling | Rampdown | | Unit | M |
Product Features
| Family Description | High Feed mills with PTKU 10 inserts of economical 10 cutting edges in maximum depth of cut ap 3.0 mm | FamilyName | TFMPT-R-10 |
| Remarks | DCN: Cutting diameter minimum DCX: Cutting diameter maximum | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
1.2850
Name
Indexable End Mills
FamilyName
TFMPT-R-10
BrandName
Taegutec
