TFMRX 650-22R-10

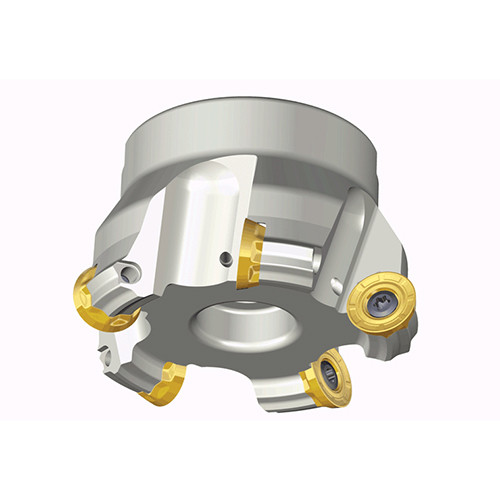

Face mills with positive round inserts of RXM(H)X for general profiling & general machining

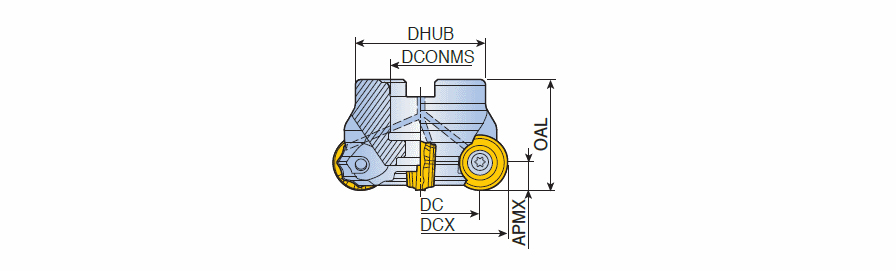

| Cutting Diameter (DC) | 50 mm | Master Insert Identification (MIID) | RXMX 1003-M |
| Cutting Item Count (CICT) | 6 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 5 mm | Application | | Facing | Helical Interpolation | Profiling | Rampdown | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Unit | M |
Product Features
| Family Description | Face mills with positive round inserts of RXM(H)X for general profiling & general machining | FamilyName | TFMRX-R-10/12/16 |
| Remarks | Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30 C) | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.8650
Name
Indexable Face Mills
FamilyName
TFMRX-R-10/12/16
BrandName
Taegutec
