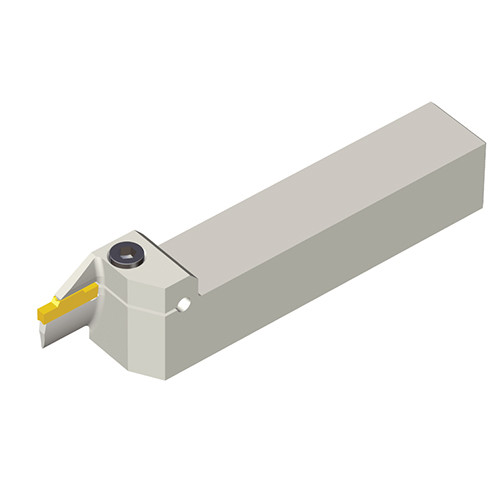

TTFL 25-35-3 RN
External holders for face grooving & turning along shaft

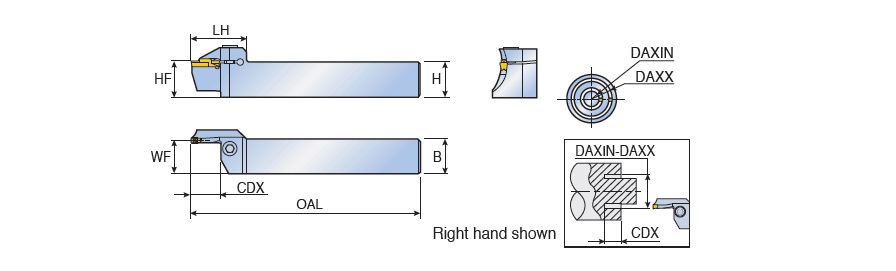

| Shank Width (B) | 25 mm | Application | | Face Grooving | Face Grooving & Turning | Face Grooving Along Shaft | |
| Shank Height (H) | 25 mm | Head Length (LH) | 35 mm |
| Cutting Depth Maximum (CDX) | 10 mm | Master Insert Identification (MIID) | TDXU 3E-0.3 |
| Axial Groove Outside Diameter Maximum (DAXX) | 40 mm | Body Material | Steel |
| Axial Groove Outside Diameter Minimum (DAXN) | 29 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Unit | M |
Product Features
| Family Description | External holders for face grooving & turning along shaft | FamilyName | TTFR/L 20/25-RN |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.7490
Name
Face Groove/Turn Indexable Holders
FamilyName
TTFR/L 20/25-RN
BrandName
Taegutec
